11.3. Rear Lighting

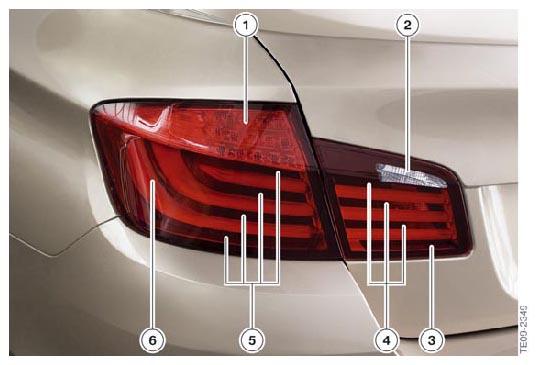

The F10 has a two-piece rear light. The structure of the rear lights can be seen in the following graphic.
EXPLANATION CHART
| Index | Explanation |
|---|---|
| 1 | Turn signal indicator light (LEDs) |
| 2 | Reverse light |
| 3 | Brake light for Brake Force Display |
| 4 | Brake light (LEDs) |
| 5 | Reflector, side marking |
| 6 | Tail light (LEDs) |
