Schematic overview and setpoint values
The maximum pressure in the high-pressure range is restricted to 245 bar. if such a high pressure arises, the high-pressure circuit is relaxed to the low-pressure range by a pressure limiting valve. The pressure change does not cause a change in the fuel volume. The resulting pressure peak is compensated for by the low-pressure damper when entering the low-pressure range.
Bank 1 shown

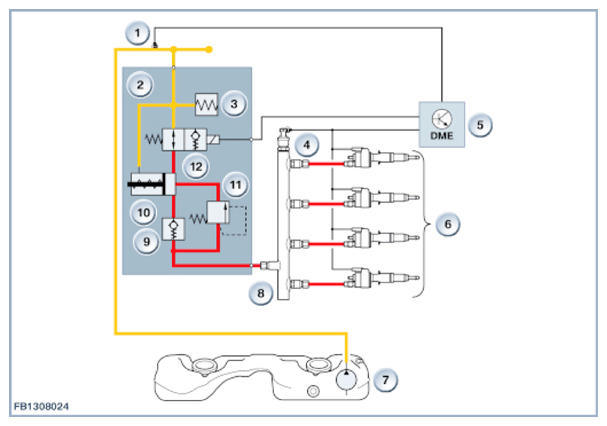

| Index | Explanation |
|---|---|
| 1 | Fuel low-pressure sensor |
| 2 | High pressure pump |
| 3 | Compensation chamber |
| 4 | Rail pressure sensor |
| 5 | Engine control |
| 6 | Injectors |
| 7 | Fuel pump |
| 8 | Fuel-distribution rail |
| 9 | Non-return valve |
| 10 | Piston, high pressure pump |
| 11 | Pressure limiting valve |
| 12 | Volume control valve |
Observe the following setpoint values for the quantity control valve:
| Size | Value |
|---|---|
| Minimum supply voltage at engine start | 6 Volts |
| System pressure of high pressure pump | 5 to 20 MPa |
| Power consumption | 4.5 A |
| Resistance at 20 °C | 0.5 Ω |
| Response time | 3.2 ms |
| Temperature range | -30 °C to 140 °C |
