Structure and inner electrical connection

The hall effect sensors are non-contact sensors. For safety reasons, the hall effect sensors supply an opposing signal (redundancy). The second sensor supplies the mirrored voltage values at all operating points.

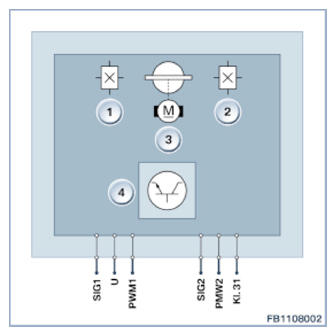

Fig 1: Throttle Vavle - Circuit Diagram
G09873032Courtesy of BMW OF NORTH AMERICA, INC.
Item Explanation
1 Hall effect sensor 1
2 Hall effect sensor 2
3 Electromotive throttle actuator with throttle valve
4 Electronic component with evaluation electronics
PIN REFERENCE

Pin Explanation
SIG 1 Hall effect sensor signal 1
U Voltage supply for hall effect sensors
PWM 1 Activation, electromotive throttle actuator
SIG 2 Hall effect sensor signal 2
PWM 2 Activation, electromotive throttle actuator
Kl. 31 Terminal 31, ground connection (DME)
