Characteristic curve and setpoint values
The transition from a high phase to a low phase indicates a falling tooth flank. The engine control only counts the falling tooth flanks. The difference between 2 falling tooth flanks is a crank angle of 6°.

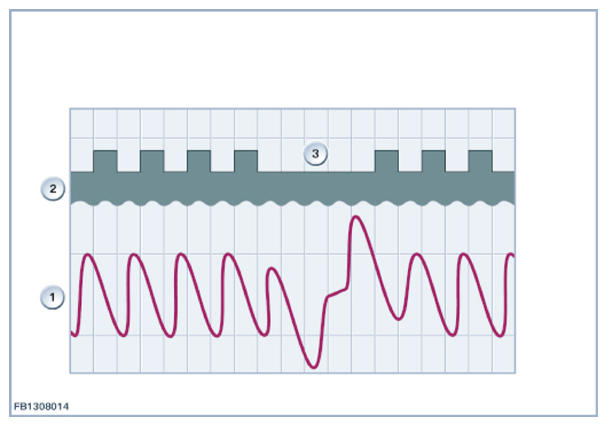

| Index | Explanation |
|---|---|
| 1 | Signal shape (calculated internally) |
| 2 | Increment wheel |
| 3 | Tooth gap |
Observe the following setpoint values for the crankshaft sensor:
| Size | Value |
|---|---|
| Voltage range | 6 to 16 Volts |
| Engine speed range | up to 8000 rpm |
| Air gap range | 0.1 to 1.8 mm |
| Maximum output current | 20 mA |
| Ambient temperature | -40 °C to 160 °C |
