Schematic overview and setpoint values
The blow-off valve dissipates unwanted charging pressure peaks that can occur when the throttle valve is closed.

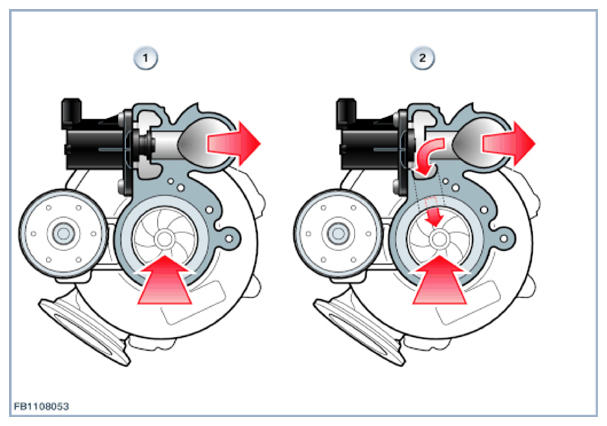

| Index | Explanation |
|---|---|
| 1 | Compressor bypass valve closed |
| 2 | Compressor bypass valve open |
Observe the following setpoint values for the blow-off valve:
| Size | Value |
|---|---|
| Voltage range | 8 to 16 V |
| Response time at 20 C and 13 V | ≤ 40 ms |
| Power consumption at 25 C and 13 V | approx. 1 A |
| Temperature range | -40 °C to 140 °C |
