2.1.4. Front section
Regarding the repair of the F10 front section, compared to the F01, there are no major changes.

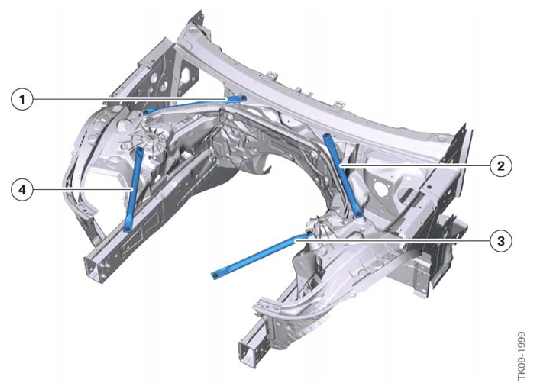

As on previous vehicles, body struts are used to increase the rigidity of the front section.
INDEX EXPLANATION CHART
| Index | Explanation |
|---|---|
| 1 | Rear right strut |
| 2 | Rear left strut |
| 3 | Front left strut |
| 4 | Front right strut |
NOTE:
When installing and dismantling the struts, it is mandatory to observe the repair instructions!
