3.2.1. HiFi system

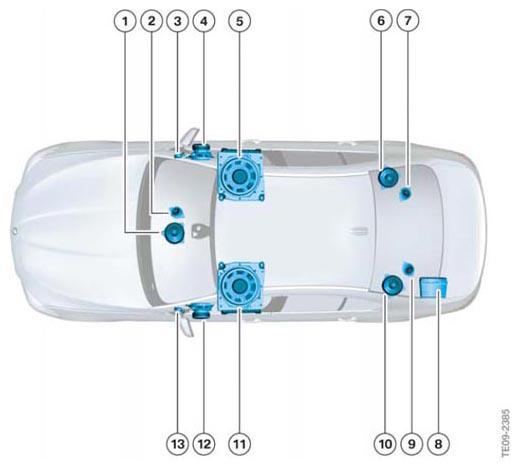

The following graphic shows the speakers and the amplifier of the HiFi system. The speakers are powered with 5 x 25 watts for the midrange speakers and tweeters and 2 x 40 watts for the bass speakers.
COMPONENTS DESCRIPTION CHART
| Index | Explanation |
|---|---|
| 1 | Tweeter, front center |
| 2 | Mid-range speaker, front center |
| 3 | Tweeter, front right door |
| 4 | Mid-range speaker, front right door |
| 5 | Woofer, under right front seat |
| 6 | Mid-range speaker, rear window shelf, right |
| 7 | Tweeter, rear window shelf, right |
| 8 | HiFi amplifier |
| 9 | Tweeter, rear window shelf, left |
| 10 | Mid-range speaker, rear window shelf, left |
| 11 | Woofer, under left front seat |
| 12 | Mid-range speaker, front left door |
| 13 | Tweeter, front left door |
