2.1.1. Basic instrument panel

The basic instrument panel already familiar from the F07 is used in all versions of the F10. A TFT display with a resolution of 640 x 160 pixels is located in the basic instrument panel under the round instruments. It has a screen diagonal of 5.7". The round instruments are always surrounded by a closed ring.

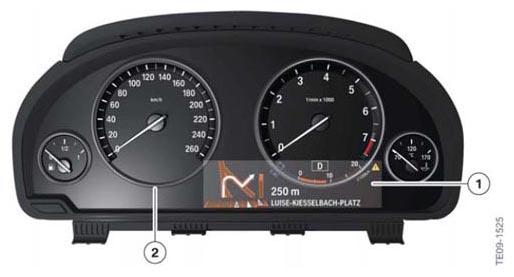

Fig 1: Identifying F10 Basic Instrument Panel (Not US)

Courtesy of BMW OF NORTH AMERICA, INC.
