Functional description
The oil pressure indicator light lights up if the oil pressure does not exceed a value defined by a spring. This value is approx. 0.2 to 0.5 bar. If the engine is started, the oil pressure opens the earth contact and the oil pressure indicator light goes out. The oil pressure switch is connected to the engine control system across a signal cable. The data interchange is digital.

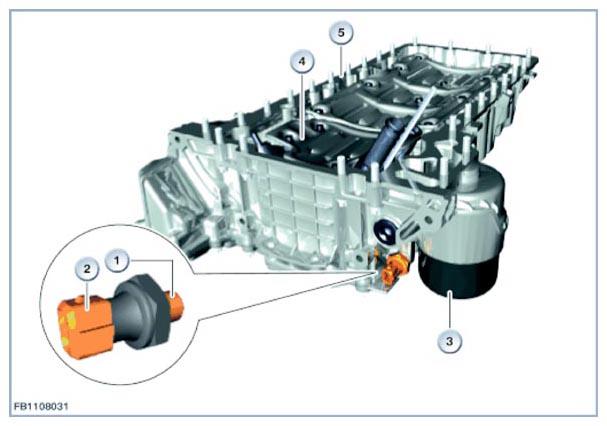

Exemplary schematic diagram of the oil pressure switch
| Item | Explanation |
|---|---|
| 1 | Oil pressure switch |
| 2 | 1-pin plug connection |
| 3 | Oil filter |
| 4 | Oil pump |
| 5 | Oil sump |
