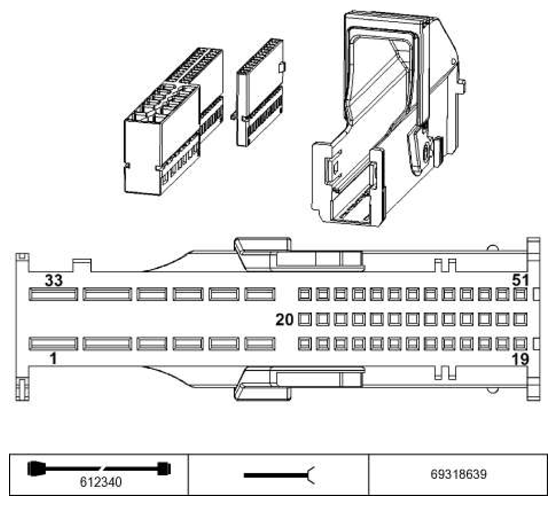

Footwell Module X14260 Connector End View
Pin Assignments At Plug Connector X14260
| Pin | Type | Description /Signal type | Connection /Measuring notes |
|---|---|---|---|
| 1 | Not occupied | ||
| 2 | E | Terminal 30 | Fuse F52 |
| 3 | A | Signal, fog light | Right fog light |
| 4 | A | Signal, high beam | Right headlight |
| 5 | A | Signal, braking force-dependent brake light | Taillight, left |
| 6 | A | Signal, low beam | Left headlight |
| 7 | Not occupied | ||
| 8 | A | Signal, parking light | Right headlight |
| 9 | A | Signal, reversing light | Taillight, right |
| 10 | A | Combined brake/rear fog light | Taillight, right |
| 11 | A | Signal, right auxiliary direction indicator light | Direction indicator light repeater, front left |
| 12 | A | Rear right direction indicator | Taillight, right |
| 13 | A | Signal, front left direction indicator | Left headlight |
| 14 | A | Signal, parking light | Taillight, left |
| 15 | A | Signal, headlight beam height control | Left headlight |
| 16 | A | Signal, parking light | Tail light, inner left |
| 17 | A | Signal, headlight beam height control | Left headlight |
| 18 | A | Signal, parking light | Tail light, inner right |
| 19 | A | Signal, headlight beam height control | Left headlight |
| 20 | Not occupied | ||
| 21 | Not occupied | ||
| 22 | A/E | Signal, LIN bus | Outside mirror, passenger's side |
| 23 | A/E | Signal, LIN bus | Driver's switch cluster |
| 24 | A/E | Signal, LIN bus | Right headlight |
| 25 | A/E | Signal, LIN bus | Left headlight |
| 26 | M | Ground Ride height sensor, front | Ride height sensor, front |
| 27 | M | Ground Ride height sensor, rear | Ride height sensor, rear |
| 28 | A | Signal, headlight beam height control | Right headlight |
| 29 | A | Supply, level sensor | Ride height sensor, rear |
| 30 | A | Signal, headlight beam height control | Right headlight |
| 31 | A | Supply, level sensor | Ride height sensor, front |
| 32 | A | Signal, headlight beam height control | Right headlight |
| 33 | Not occupied | ||
| 34 | Not occupied | ||
| 35 | A | Interior lights | Interior/reading lamp, front |
| 36 | Not occupied | ||
| 37 | A | Signal, braking force-dependent brake light | Taillight, right |
| 38 | Not occupied | ||
| 39 | Not occupied | ||
| 40 | A | Signal, center brake light | Auxiliary brake light |
| 41 | A | Activation, bi-xenon shutters | Left headlight Right headlight |
| 42 | A | Supply, stepper motors | Left headlight Right headlight |
| 43 | A/E | Signal PT-CAN low | Connector CAN bus low |
| 44 | A/E | Signal PT-CAN high | Connector CAN bus high |
| 45 | A/E | K-bus signal | K-bus connector |
| 46 | A/E | K-bus signal | K-bus connector |
| 47 | M | Ground | Ground point |
| 48 | E | Signal, rear level sensor | Ride height sensor, rear |
| 49 | E | Signal, front level sensor | Ride height sensor, front |
| 50 | A | Signal, headlight beam height control | Left headlight |
| 51 | A | Signal, headlight beam height control | Right headlight |
