41 00... Body Gap Dimensions

NOTE: Symmetry of the gaps between left and right sides of the vehicle has top priority.
The door gaps must not deviate between the front and rear gap by more than 1.0 mm.

Dimensions in mm

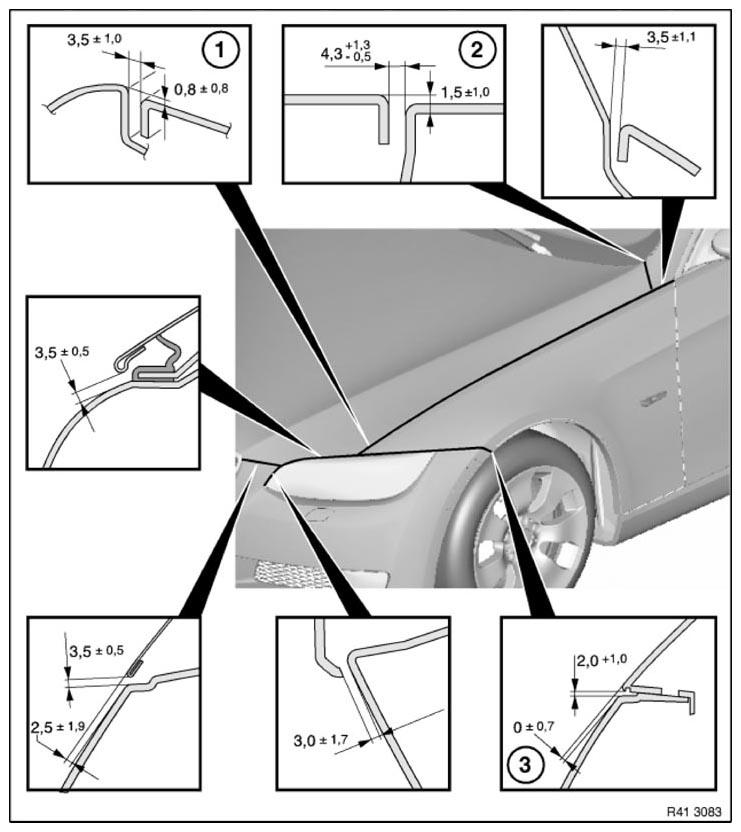

Fig 1: Hood, Front Bumper, Front Fender, Hood, Headlamps And Front Pillar Body Gap Dimensions And Measurement Points

Courtesy of BMW OF NORTH AMERICA, INC.

Dimension (1) 0.8 ±0.8 is reduced in the rearward direction of travel to 0 ±0.8

Dimension (2) 1.5 ±1.0 is reduced in the downward direction to 0 ±1.5

Dimension (3) 0 ±0.7 is reduced in the forward direction of travel to 2.5 ±0.7

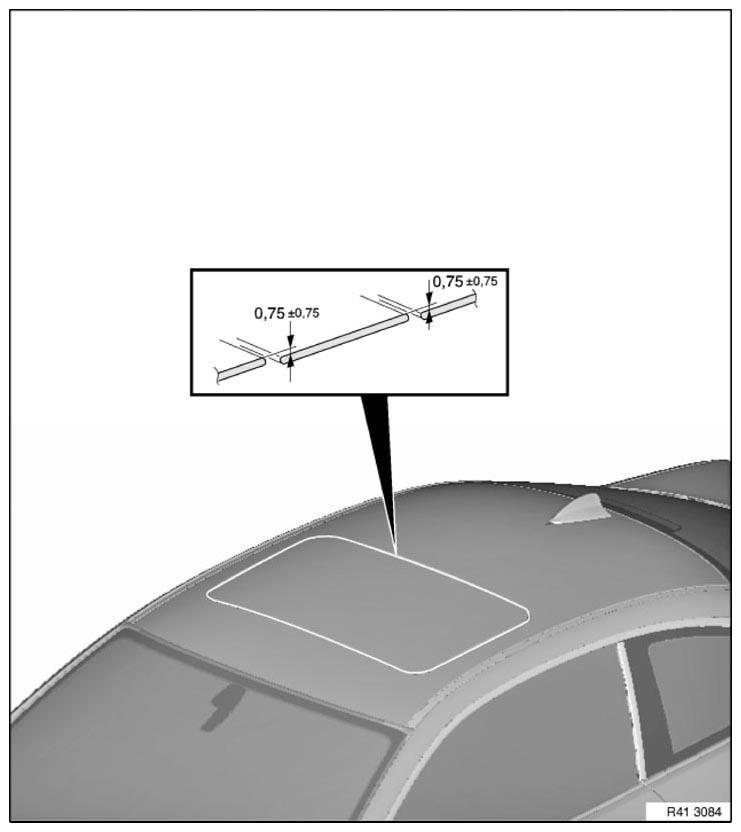

Fig 2: Roof And Sunroof Body Gap Dimensions And Measurement Points

Courtesy of BMW OF NORTH AMERICA, INC.

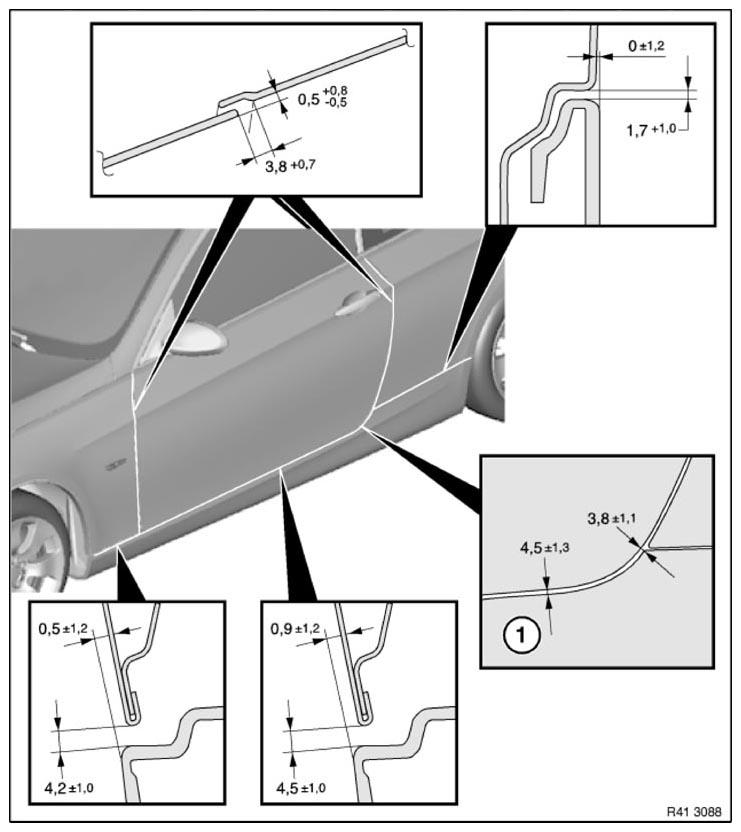

Fig 3: Front Fender, Front Door, Quarter Panel And Door Sill Trim Body Gap Dimensions And Measurement Points

Courtesy of BMW OF NORTH AMERICA, INC.

Dimension (1) 4.5 ± 1.3 is reduced in the rearward direction of travel to 3.8 ± 1.1

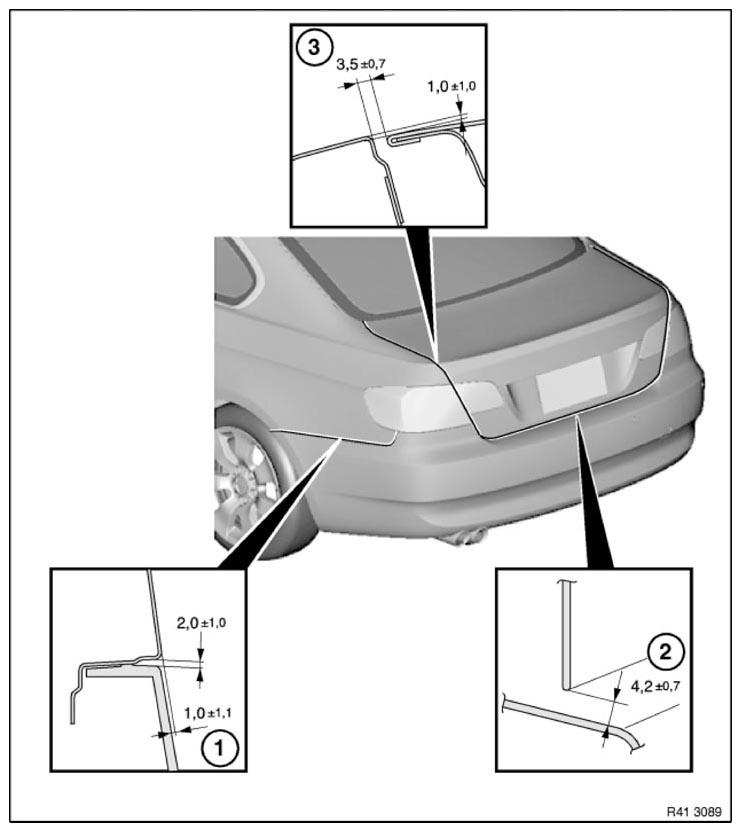

Fig 4: Quarter Panel, Trunk Lid And Rear Bumper Body Gap Dimensions And Measurement Points

Courtesy of BMW OF NORTH AMERICA, INC.

Dimension (1) 1.0 ± 1.1 is reduced in the forward and rearward direction of travel to 0 ± 1.1

Dimension (2) 4.2 ± 0.7 is reduced on both sides with the start of the radius to 3.8 ± 0.7

Dimension (3) 3.5 ± 0.7 is reduced in the rearward direction of travel to 3.8 ± 0.7
