VANOS System: Notes

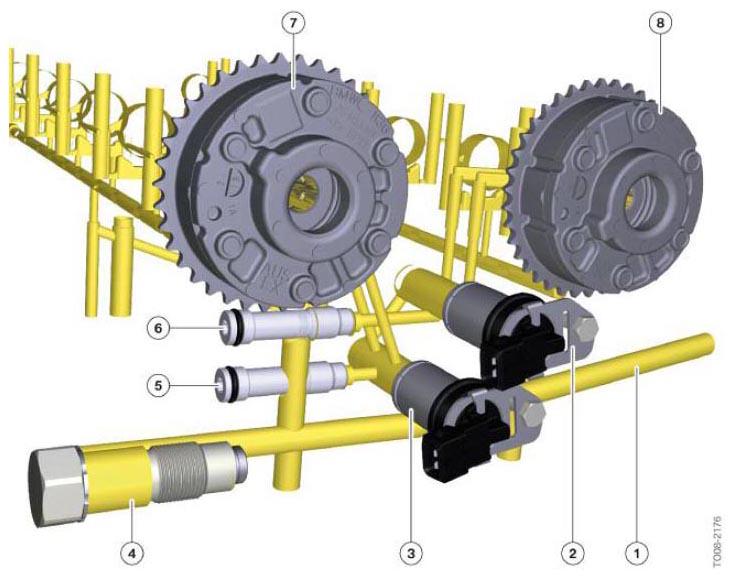

Fig 1: Identifying VANOS With Oil Supply - N54
G06895973Courtesy of BMW OF NORTH AMERICA, INC.
INDEX EXPLANATION CHART

Index Explanation
1 Main oil duct
2 VANOS solenoid valve, intake side
3 VANOS solenoid valve, exhaust side
4 Chain tensioner
5 Non return valve, exhaust side
6 Non return valve, intake side
7 VANOS adjustment unit, exhaust side
8 VANOS adjustment unit, intake side
