Belt hand-over controller
The belt hand-over controller activates the drive of the belt hand-over. The position of the drive is indicated to the belt hand-over controller by a Hall sensor in the drive.
The end position of the extended belt hand-over is picked up by another Hall sensor. The end position is signalled to the belt hand-over controller.
Both signals are sent by the belt hand-over controller via the LIN bus to the footwell module (FRM).

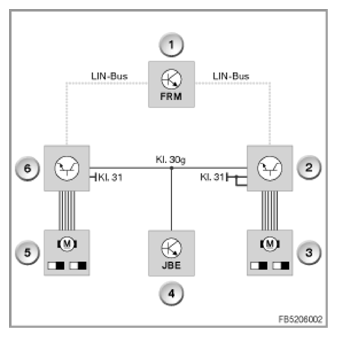

| Index | Explanation |
|---|---|
| 1 | Footwell module (FRM) |
| 2 | Belt hand-over controller |
| 3 | Drive with Hall sensor and Hall sensor for end position |
| 4 | Junction box electronics (JBE) |
| 5 | Drive with Hall sensor and Hall sensor for end position |
| 6 | Belt hand-over controller |
| LIN | Local Interconnect Network Bus |
| Terminal 30g | Terminal 30 switched |
| Terminal 31 | Terminal 31 |
