Valve Lift Adjustment Overview: Function
Actuation of the Valvetronic servomotor is limited to a maximum of 40 amps. A maximum of 20 amps are available over a period of > 200 milliseconds. The Valvetronic servomotor is actuated by a pulse width modulated signal. The duty cycle is between 5% and 98%.

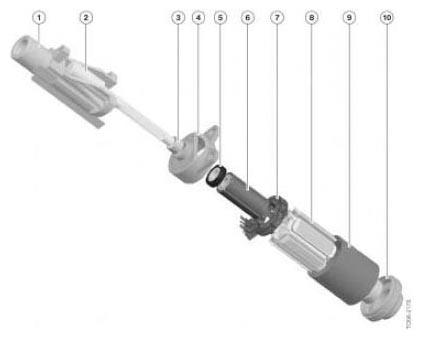

INDEX EXPLANATION CHART
| Index | Explanation |
|---|---|
| 1 | Socket |
| 2 | Worm shaft |
| 3 | Needle bearing |
| 4 | Bearing cover |
| 5 | Magnetic sensor wheel |
| 6 | Rotor with four magnets |
| 7 | Sensor |
| 8 | Stator |
| 9 | Housing |
| 10 | Bearing |
