Valve Timing

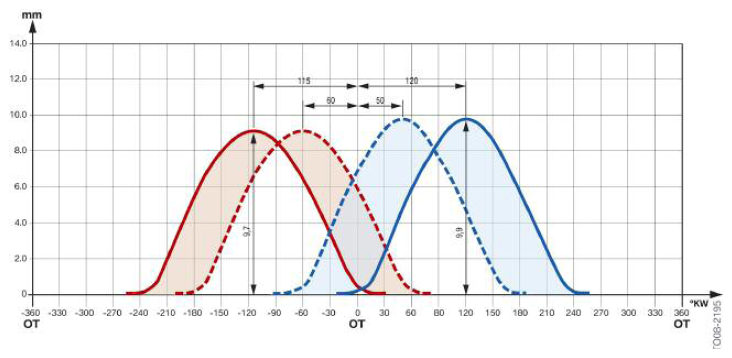

Fig 1: Identifying Valve Timing Diagram - N55

Courtesy of BMW OF NORTH AMERICA, INC.

INDEX EXPLANATION CHART

		N54B30O0	N55B30M0
Intake valve Ø	[mm]	31.4	32
Exhaust valve Ø	[mm]	28	28
Maximum valve lift, intake valve/exhaust valve	[mm]	9.7/9.7	9.9/9.7
Intake camshaft spread (VANOS adjustment range)	[°crankshaft]	55	70
Exhaust camshaft spread (VANOS adjustment range)	[°crankshaft]	45	55
Intake camshaft opening angle (max.-min. spread)	[°crankshaft]	125 - 70	120 - 50
Exhaust camshaft opening angle (max.-min. spread)	[°crankshaft]	130 - 85	115 - 60
Opening period intake camshaft	[°crankshaft]	245	255
Opening period exhaust camshaft	[°crankshaft]	261	261

NOTE: The N55 has a larger intake and exhaust VANOS adjustment range as well as larger intake valve lift, and cam duration than the N54 engine.
