Electromagnet for radiator shutter
The electromagnet has the task of holding the radiator shutter closed.

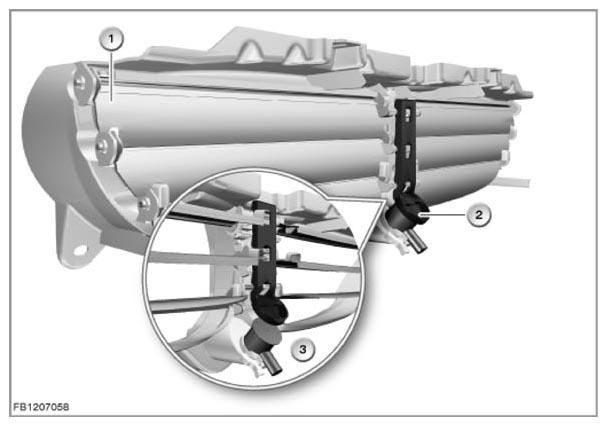

The illustration shows the lower radiator shutter in the E60.
| Index | Explanation |
|---|---|
| 1 | Radiator shutter |
| 2 | Radiator shutter closed (held in place by the electromagnet being supplied with current) |
| 3 | Radiator shutter open (e.g. opened by the air stream) |
