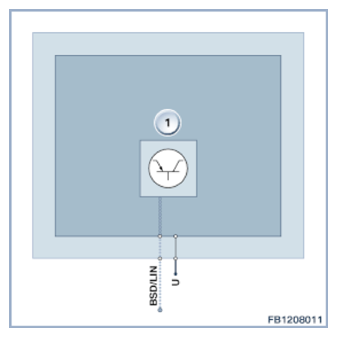

Structure and inner electrical connection
The alternator has a separate terminal for the positive battery lead. The control variables (e.g. nominal voltage of alternator) are transferred to the controller via the serial data interface (BSD or LIN).
The regulator is attached to the back of the alternator.
| Index | Explanation |
|---|---|
| 1 | Electronic component with controller |
PIN REFERENCE
| Pin | Explanation |
|---|---|
| BSD/LIN | serial data interface (BSD or LIN) |
| U | Positive battery cable |
