Home >> BMW >> 2012 >> 335xi Automatic Trans >> Repair and Diagnosis >> Body & Frame >> Windows >> Body Equipment - Repair - E92 >> General >> 51 21... Overview Of Front Door Locks

51 21... Overview Of Front Door Locks

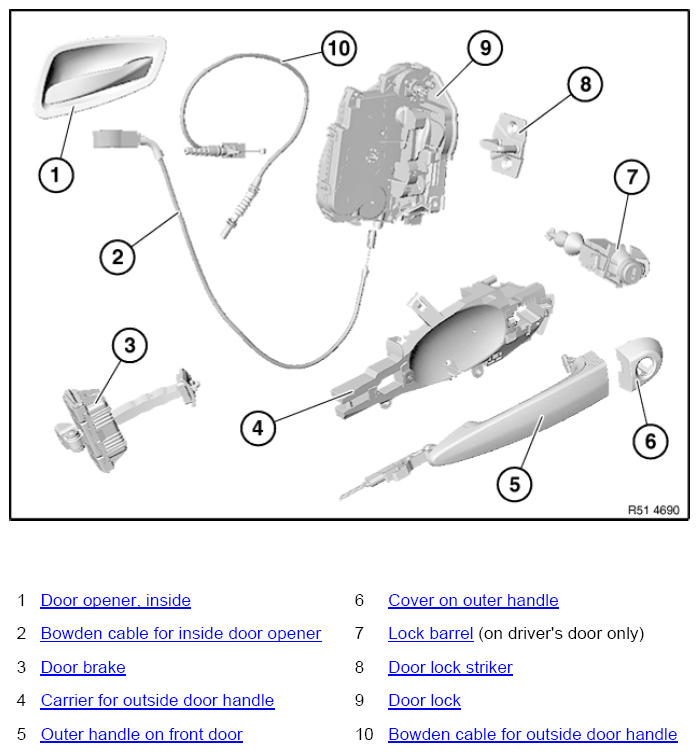

Fig 1: Overview Of Front Door Locks

G09850569

Courtesy of BMW OF NORTH AMERICA, INC.
