GWS: Gear selector switch
The gear selector switch (GWS) consists of the control electronics circuit and the selector lever.
The SPORT button (EDC button) is integrated in the gear selector switch and can be replaced separately.
The sensors for recording the selector-lever position as well as interlocking for inadvertent gearshifts are integrated in the control electronics circuit.

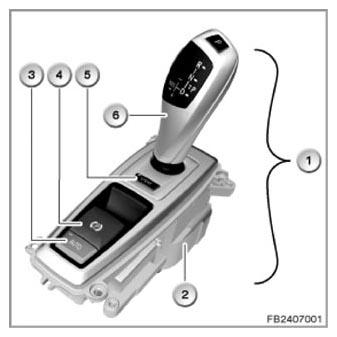

| Index | Explanation |
|---|---|
| 1 | Gear selector switch (GWS) |
| 2 | Control electronics |
| 3 | Button for automatic hold (as of 10/2007) |
| 4 | Parking brake button |
| 5 | SPORT button (EDC button) |
| 6 | Selector lever |
