23 14... Replacing reversing light switch

Necessary preliminary tasks

Remove rear underbody protection . See 51 47 491 REMOVING AND INSTALLING/REPLACING REAR UNDERBODY PROTECTION or 51 47 491 REMOVING AND INSTALLING/REPLACING REAR UNDERBODY PROTECTION

Only transmissions GS6-17DG/BG and GS6-37DG/BG

Disconnect plug connection (1) on reverse gear switch.

Remove reverse gear switch.

Tightening torque: 23 14 1AZ .

NOTE: Graphic similar

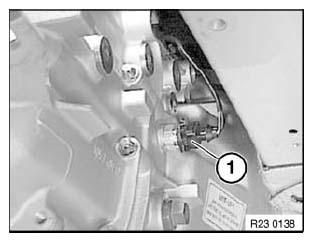

Fig 1: Identifying Plug Connection On Reverse Gear Switch

G04726012

Courtesy of BMW OF NORTH AMERICA, INC.

Only transmission GS6-53DG/BG

Disconnect plug connection (1) on reverse gear switch.

Remove reverse gear switch.

Tightening torque: 23 14 1AZ .

NOTE: Graphic similar

Fig 2: Identifying Plug Connection On Reverse Gear Switch

G05476320

Courtesy of BMW OF NORTH AMERICA, INC.

Only transmission GS6-45DZ/BZ

Disconnect plug connection (1) on reverse gear switch.

Remove reverse gear switch.

Tightening torque: 23 14 1AZ .

Fig 3: Identifying Plug Connection On Reverse Gear Switch

G09847992

Courtesy of BMW OF NORTH AMERICA, INC.
