32 13 070 Removing And Installing (Replacing) Electric Steering Box (EPS)

IMPORTANT: Connecting line:
In the event of moisture/corrosion inside the two plug connections, check the insulation of the connecting line. If the insulation reveals any noticeable/striking features, partial replacement will be necessary. Otherwise it will be sufficient to replace the contacts or connector housing.

NOTE: In a warranty case you must always provide a fault memory printout, even where there is no fault entry, with the defective part.

IMPORTANT: If the lower section of the steering shaft is separated from the steering gear/steering column, the steering column switch cluster may be damaged when the steering wheel/steering shaft is twisted!

Necessary preliminary tasks

Disconnect BATTERY NEGATIVE LEAD
NOTE: High-current-carrying line laid with permanent positive connection (80 A fuse).
Remove FRONT UNDERBODY PROTECTION
E88, E93: Remove V-strut on left and right
Remove LOWER SECTION OF STEERING SHAFT FROM STEERING BOX
Remove both TRACK ROD ENDS FROM SWIVEL BEARING
Replacement: Remove both TRACK ROD ENDS FROM STEERING GEAR

Cut open cable strap (1).

Disconnect plug connections (2).

Installation note:

Check plug connections for moisture and corrosion. To do so, read and follow notes/information.

Plug connections must audibly snap into place.

Make sure connecting lead is correctly laid.

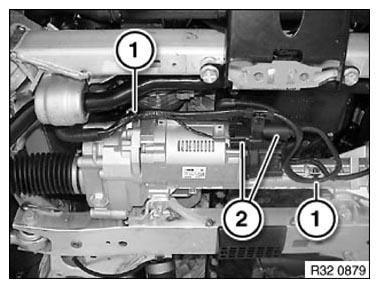

Fig 1: Cable Strap And Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.

Release nuts and remove screws (1) towards bottom.

Remove steering gear (2) forward.

Installation note:

Replace screws and nuts.

Tightening torque 32 00 1AZ .

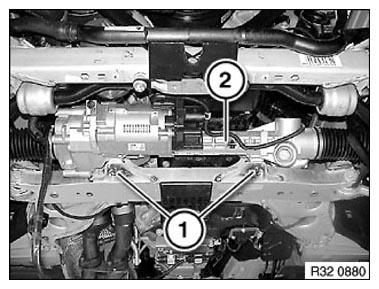

Fig 2: Steering Gear And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

After installation:

Turn steering wheel in both directions to the limit position. The airbag indicator lamp must not light up in the process.
Replacement: Carry out PROGRAMMING/ENCODING
Teach in END STOP SOFTWARE
Perform chassis/wheel alignment check . See 32 00 150 KDS CHASSIS/WHEEL ALIGNMENT CHECK WITH VEHICLE LOAD UP TO DESIGN POSITION or 32 00 155 KDS CHASSIS/WHEEL ALIGNMENT CHECK WITH RIDE HEIGHT MEASUREMENT WITHOUT VEHICLE LOAD
Carry out STEERING ANGLE SENSOR ADJUSTMENT
