32 31 003 Removing And Installing/Replacing Upper Section Of Steering Column Trim

Special tools required:

00 9 323

IMPORTANT: Disconnecting the plug connection for the hands-free microphone or emergency SOS call button results in fault memory entries in the telephone control unit (limitation in the emergency SOS call system).

After installation:

Read out fault memory and delete entries

Move steering column in "bottom" and "extended" position.

IMPORTANT: Risk of damage!
Unclip steering column trim (1) at side with special tool 00 9 323 .

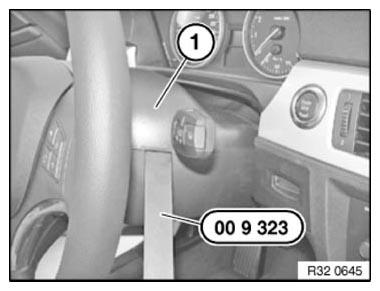

Fig 1: Removing Steering Column Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Tilt steering column trim (1) towards front.

Unclip steering column gap cover (2) from steering column trim.

Installation:

Tilt steering column trim towards rear, align by way of locks to lower section (of steering column trim) and press down.

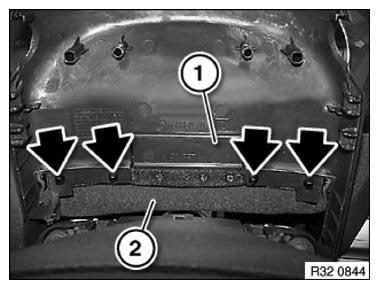

Fig 2: Steering Column Trim, Locks And Steering Column Gap Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement

E88, E93: Remove hands-free microphone from steering column trim.
