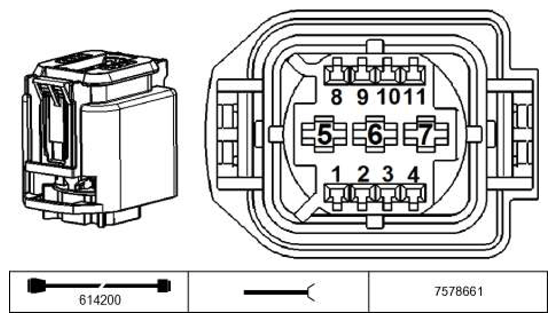

DME Control Module SX60004A Connector End View
Pin Assignments At Plug Connector X60004
| Pin | Type | Description /Signal type | Connection /Measuring notes |
|---|---|---|---|
| 1 | A | Activation | Ignition coil, cylinder 1 |
| 2 | A | Activation | Ignition coil, cylinder 2 |
| 3 | A | Activation | Ignition coil, cylinder 3 |
| 4 | A | Activation | Ignition coil, cylinder 4 |
| 5 | A | Activation | Ignition coil, cylinder 5 |
| 6 | A | Activation | Ignition coil, cylinder 6 |
