51 71... Removing And Installing/Replacing Multifunction Pan

Necessary preliminary tasks

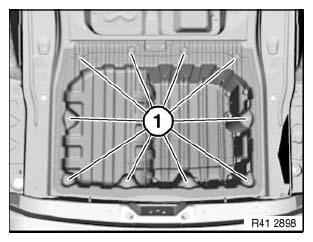

Release screws (1).

Remove guide (2).

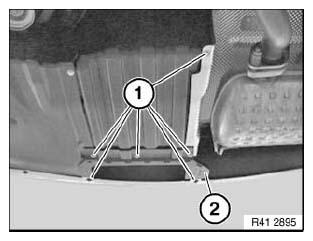

Fig 1: Guide And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

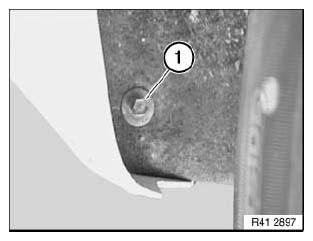

Fig 2: Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Remove cover (2).

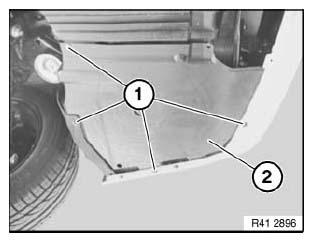

Fig 3: Luggage Compartment Wheel Arch Trims, Cover And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Release nuts (1) and remove multifunction pan.

Tightening torque 51 71 9AZ .

Fig 4: Multifunction Pan Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Seals (1) on multifunction pan (2) must be replaced each time they are removed.

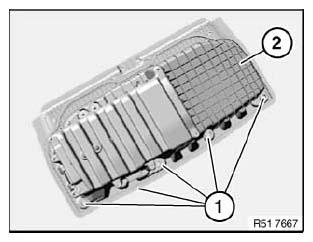

Fig 5: Seals On Multifunction Pan

Courtesy of BMW OF NORTH AMERICA, INC.

Necessary preliminary tasks

Unclip vacuum line (1) from heat shield.

Unfasten screws (2).

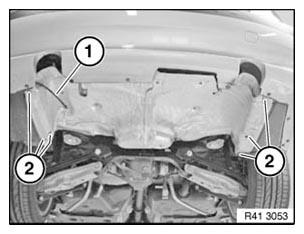

Fig 1: Identifying Vacuum Line & Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Remove both heat shields.

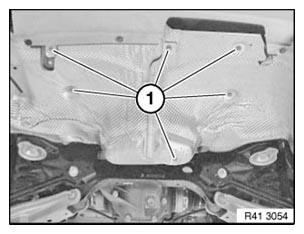

Fig 2: Identifying Heat Shield Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip line (1).

Unfasten screws (2).

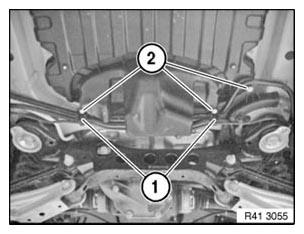

Fig 3: Identifying Screws And Line

Courtesy of BMW OF NORTH AMERICA, INC.

Release nuts (1) and remove multifunction pan.

Tightening torque 51 71 9AZ .

Fig 4: Identifying Multifunction Pan Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Seals (1) on multifunction pan (2) must be replaced each time they are removed.

Fig 5: Identifying Seals On Multifunction Pan
