51 71... Removing And Installing/Replacing Left/Right Reinforcement Cover

Release screws (1 and 2).

Remove reinforcement cover (3).

Installation:

Make sure reinforcement cover (3) is correctly seated.

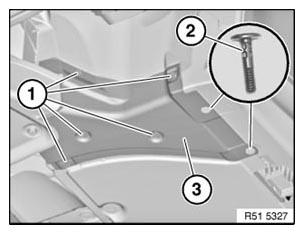

Fig 1: Reinforcement Cover With Screws

Courtesy of BMW OF NORTH AMERICA, INC.
