51 71... Notes On Fitting Covers In Front Wheel Arch
IMPORTANT:
Make sure all covers in wheel arch are correctly seated in relation to each other.

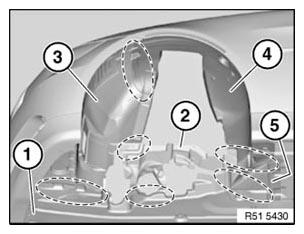

E90/E91/E92:
- Panel (1) overlaps cover (2, 3 and 5)
- Cover (2) overlaps cover (3 and 4)
- Cover (4) overlaps cover (3)
- Cover (5) overlaps cover (2 and 4)
