51 11... Removing And Installing/Replacing Cover For Headlight Washer Unit On Left

Necessary preliminary tasks

• Remove front BUMPER TRIM

Release catches (1) and remove cover (2).

Installation:

Catches (1) must not be damaged

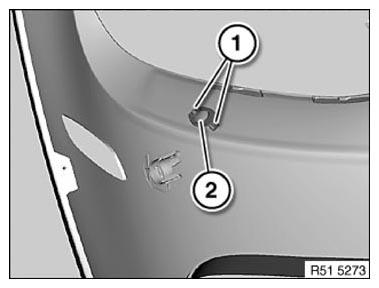

Fig 1: Catches And Cover

Courtesy of BMW OF NORTH AMERICA, INC.
