51 31... Removing And Installing/Replacing Retaining Strip For Cowl Panel Cover: Notes

Necessary preliminary tasks

Remove COVER for cowl panel

IMPORTANT: Retaining strip (2) has an aluminum profile insert (1).
Carefully wind out retaining strip (2) (windscreen breakage).

4 Glue bead
5 Pinched butyl

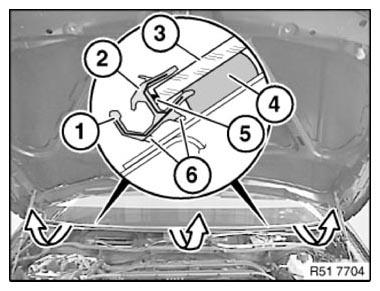

Fig 1: Removing Retaining Strip
Courtesy of BMW OF NORTH AMERICA, INC.
6 Contact surfaces

Installation:

Clean cutout.

Pay attention to center marking on retaining strip (1) and windscreen.

Insert positioner (2) for retaining strip (1) must be removed after it has been fitted on the windscreen but before the windscreen itself is installed.
