61 31 192 Replacing button for controller (until 09/2008)

Special tools required:

00 9 317

IMPORTANT: Risk of damage!
Before dismantling the button it is imperative to note whether the controller is installed with a version before or after 09/2008!

NOTE: The number of buttons and shape of controller can vary depending on vehicle type.

Before 09/2008 : Controller (1) has buttons on bottom only.

After 09/2008 : Controller (2) has buttons top and bottom.

Button may be removed from controller (1) only!

NOTE: These repair instructions describe the removal of the button from controller (1)!

Fig 1: Locating Controller Buttons

Courtesy of BMW OF NORTH AMERICA, INC.

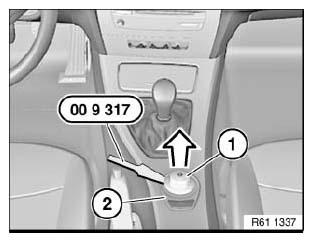

Partially fit special tool 00 9 317 as pictured.

Lever out button for controller (1) from controller (2) and remove towards top.

Fig 2: Removing Controller Button

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Risk of damage!
Install button for controller only when controller is installed.

Installation note:

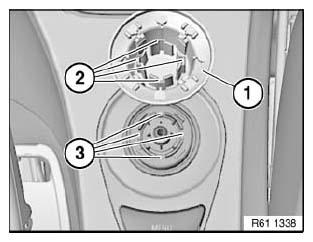

Fit button for controller (1) so that guides (2) are correctly seated in mounts (3).

Fig 3: Identifying Controller Button Guides

Courtesy of BMW OF NORTH AMERICA, INC.
