61 31 196 Removing and installing (replacing) rear controller

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove BOTH SWITCH COMBINATIONS FOR SEAT ADJUSTMENT

Release screws (1) on left/right.

Remove wood trim on rear center armrest (2).

Unlock plug connection behind and disconnect.

Fig 1: Identifying Rear Centre Armrest With Screws

Courtesy of BMW OF NORTH AMERICA, INC.

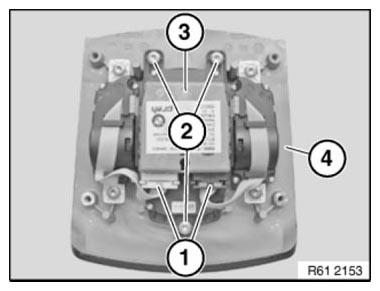

Disconnect plug connection (1).

Unfasten screws (2).

Remove rear controller (3) from wood trim on rear center armrest (4).

Fig 2: Identifying Rear Controller With Screws And Plug Connection And Rear Centre Armrest

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out VEHICLE PROGRAMMING/ENCODING .
