61 34 Removing and installing/replacing 12V socket in front storage compartment (ashtray)

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2015 BMW Alpina B7L xDrive, 2015 BMW Alpina B7 xDrive, 2015 BMW 750i xDrive, 2015 BMW 750Li xDrive, and 2015 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

61 0 250

Necessary preliminary tasks

REMOVE FRONT STORAGE COMPARTMENT .

Disconnect plug connection (1). Unlock plug and pull out of mounting in direction of arrow.

Unlock socket light (2) and pull out.

Expose cable (3).

Installation:

Ensure correct routing of cables.

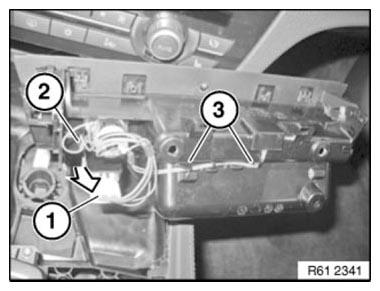

Fig 1: Removing Socket Light

G06895085

Courtesy of BMW OF NORTH AMERICA, INC.

Open cap (1) towards top.

Press retaining lugs together with a suitable tool and lift out ashtray light (2).

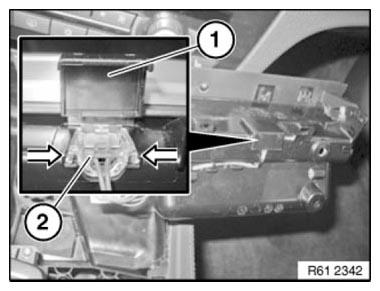

Fig 2: Pressing Retaining Lugs Together

G06895086

Courtesy of BMW OF NORTH AMERICA, INC.

Remove 12V socket with special tool 61 0 250 .

Fig 3: Removing 12V Socket Using Special Tool (61 0 250)

G06895084

Courtesy of BMW OF NORTH AMERICA, INC.
