Connection of measuring equipment

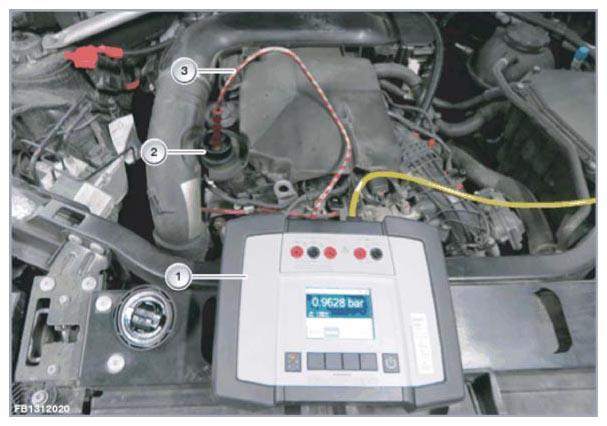

Fig 1: Checking Engine Internal Pressure

Courtesy of BMW OF NORTH AMERICA, INC.

Shown as an example on a N57.

1. BMW measuring equipment
2. Special tool:
   • For N47C in MINI: 2 364 877
   • For all other diesel N-engines and diesel B-engines: 11 9 880
3. Hose, order number: 81 38 2 201 924
