Localization of the chafe marks

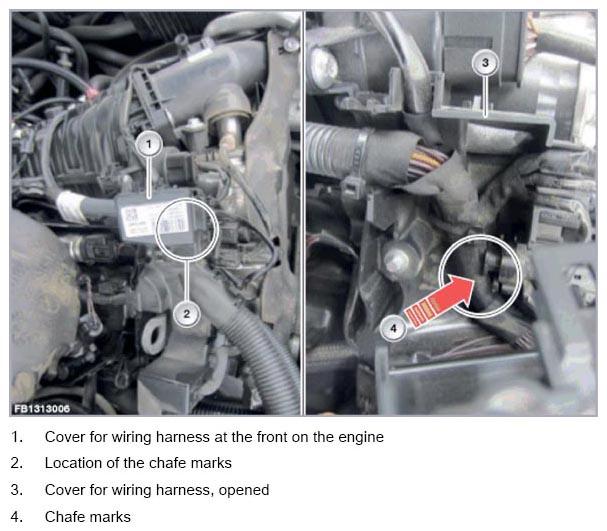

Fig 1: Engine Wiring Harness Chafe Marks
G09908711Courtesy of BMW OF NORTH AMERICA, INC.
  1. Cover for wiring harness at the front on the engine
  2. Location of the chafe marks
  3. Cover for wiring harness, opened
  4. Chafe marks

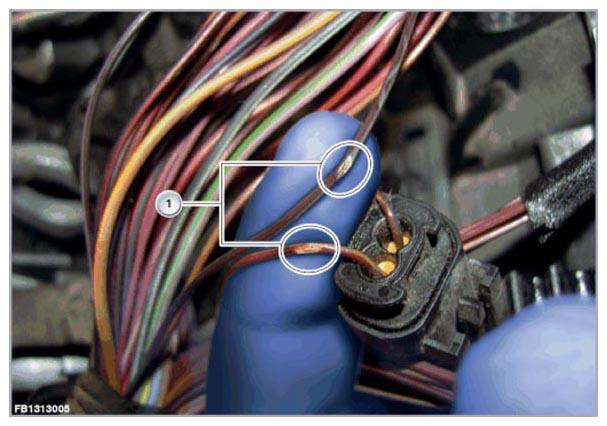

Fig 2: Chafe Marks
G10092248Courtesy of BMW OF NORTH AMERICA, INC.
  1. Examples of chafe marks

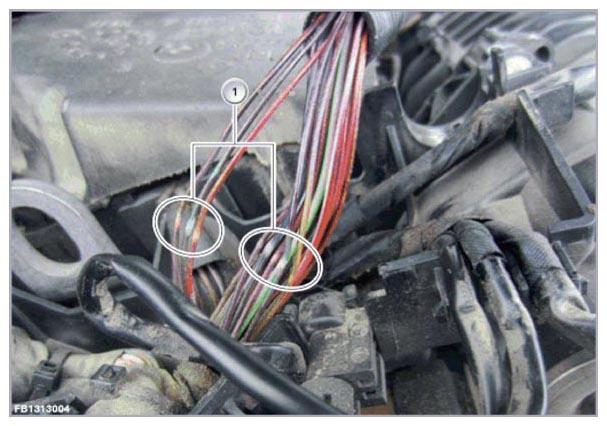

Fig 3: Chafe Marks
G10092249Courtesy of BMW OF NORTH AMERICA, INC.
  1. Examples of chafe marks
