31..... Layout of spring strut shock absorber

WARNING: This page is about a different car, the 2013 BMW M3, 2012 BMW M3, and 2011 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

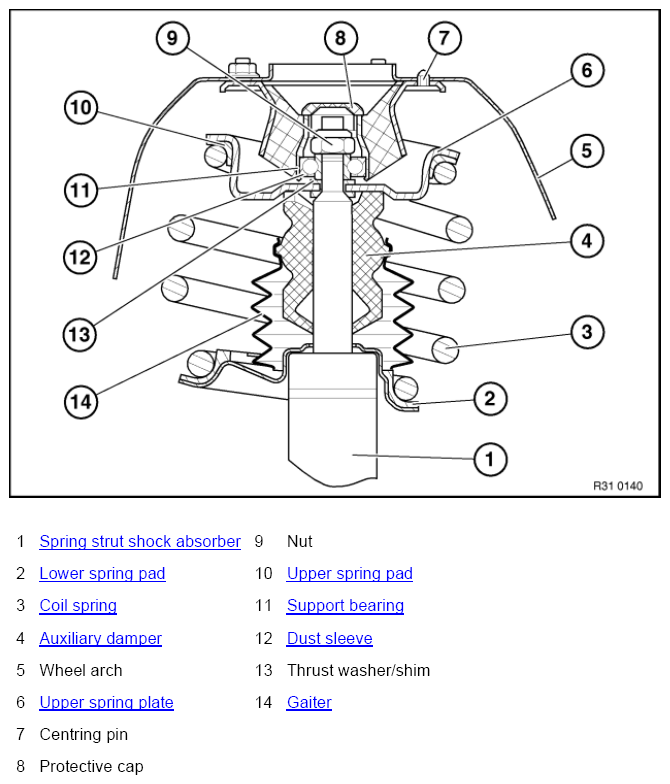

Fig 1: Identifying Spring Strut Shock Absorber Related Components
G09892354Courtesy of BMW OF NORTH AMERICA, INC.
