51 00... Service position of engine compartment lid

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2013 BMW 335is, 2013 BMW 335i, 2012 BMW 335is, 2012 BMW 335i, and 2011 BMW 335is. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

51 0 040
51 2 160
51 2 170
51 2 180
51 2 240

NOTE: Only the special tool pertaining to the model series can be selected.

Series	Special tool
E46, R50, R52, R53	51 2 160
E53, E60, E61, E63, E64, E71, E72, E81, E82, E88, E85, E86, E87, E90, E91, E92, E93	51 2 170
E65, E66, E67	51 2 180
E83	51 0 040
E70	51 2 240

WARNING: Risk of injury and damage!
Engine compartment lid must be held by a second person helping.

NOTE: The illustrations below serve as examples for all corresponding vehicles.
The operation is described on the left side; proceed in the same way for the right side.

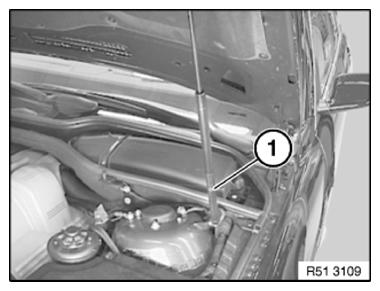

Special tool can only be used on housing (1) of gas spring strut (thick part).

NOTE: Gas spring strut can also be installed the other way round (housing on hood/bonnet).
Special tool can be used in both directions.

Fig 1: Identifying Housing Of Gas Spring Strut

Courtesy of BMW OF NORTH AMERICA, INC.

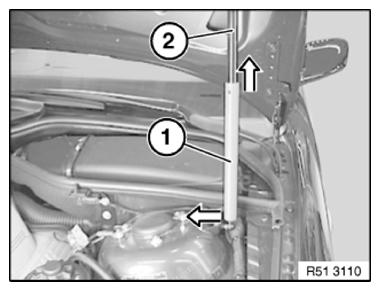

Release GAS SPRING STRUT on left/right housing side.

Slide special tool (1) over housing (2) of gas spring strut.

Clip ball socket of special tool on ball stud.

Proceed in same way on other side.

Fig 2: Sliding Special Tool Over Gas Spring Strut Housing

Courtesy of BMW OF NORTH AMERICA, INC.
