32 31 241 Replacing steering column adjustment lever

Necessary preliminary tasks:

• REMOVE trim panel for pedal mechanism

Release nuts (1) from footwell and detach adjustment lever.

Installation note:

Replace nut (1).

In installed or closed condition, the adjustment lever must be positioned parallel with the steering column!

Tightening torque 32 31 5AZ .

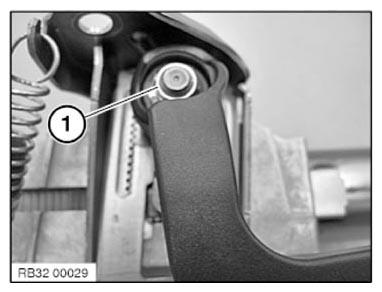

Fig 1: Identifying Steering Column Adjustment Lever Nut

Courtesy of BMW OF NORTH AMERICA, INC.
