Section 754 (Front Axle - Repair -- M3 Coupe)
>>
General
>>
31..... Layout Of Spring Strut Shock Absorber
31..... Layout Of Spring Strut Shock Absorber
WARNING:
This page is about a different car, the 2013 BMW M3, 2012 BMW M3, and 2011 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

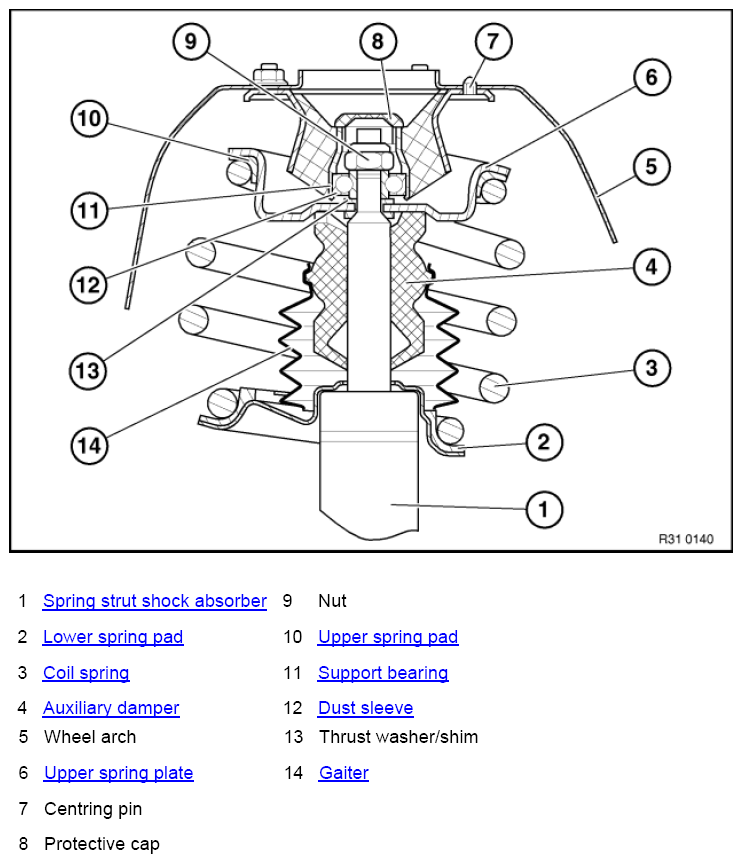

Fig 1: Layout Of Spring Strut Shock Absorber
Courtesy of BMW OF NORTH AMERICA, INC.
