54 34... Repair wind deflector fixing

Overview of spare parts in wind deflector repair kit:

Wind deflector repair kit: Part number 54 34 7 358 170

1. Detent pin
2. Compression spring
3. Slide

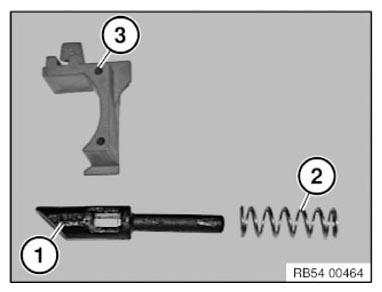

   Fig 1: Identifying Detent Pin And Compression Spring

   Courtesy of BMW OF NORTH AMERICA, INC.

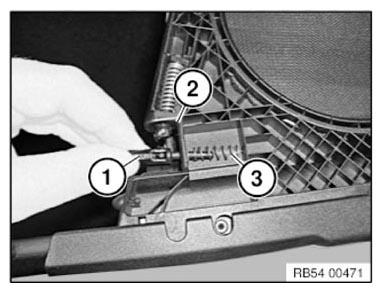

Slide detent pin (1) through the wind deflector opening (2).

Guide compression spring (3) into the detent pin (1).

Fig 2: Sliding Detent Pin Into Wind Deflector Opening

Courtesy of BMW OF NORTH AMERICA, INC.

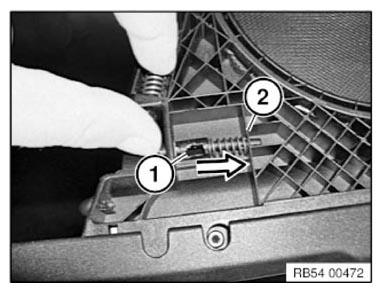

Press detent pin (1) completely into the guide on the wind deflector (2).

Fig 3: Pressing Detent Pin Into Wind Deflector Guide

Courtesy of BMW OF NORTH AMERICA, INC.

Press slide (1) as far as it will go into the opening of the detent pin (2).

Fig 4: Pressing Detent Pin

Courtesy of BMW OF NORTH AMERICA, INC.

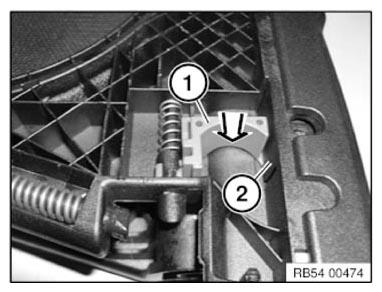

Press slide (1) down into the guide of the wind deflector (2).

Installation note:

Slide (1) must engage fully in the guide on the wind deflector (2).

Run a function check.

Fig 5: Pressing Slide Into Wind Deflector Guide

Courtesy of BMW OF NORTH AMERICA, INC.
