63 12... Headlight fogging fault pattern

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2013 BMW 335is, 2013 BMW 335i, 2012 BMW 335is, 2012 BMW 335i, and 2011 BMW 335is. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Certain weather conditions can lead to fogging on the inside of the headlight lens.
This is not necessarily a fault that requires replacement of the headlight.

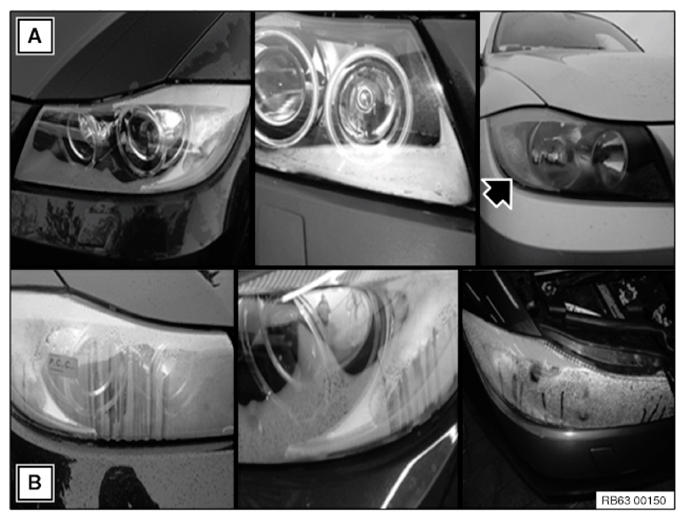

Fig 1: Locating Headlight Fogging Faults

Courtesy of BMW OF NORTH AMERICA, INC.

Permissible fogging. Headlight does not need to be replaced.
Impermissible fogging. Replace the headlight.
