63 11... Installing headlight repair kit

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2013 BMW 335is, 2013 BMW 335i, 2012 BMW 335is, 2012 BMW 335i, and 2011 BMW 335is. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove headlight . See 63 12 015 REMOVING AND INSTALLING OR REPLACING LEFT HEADLIGHT (ADAPTIVE HEADLIGHT) or 63 12 010 REMOVING AND INSTALLING OR REPLACING LEFT HEADLIGHT (XENON HEADLIGHT) .

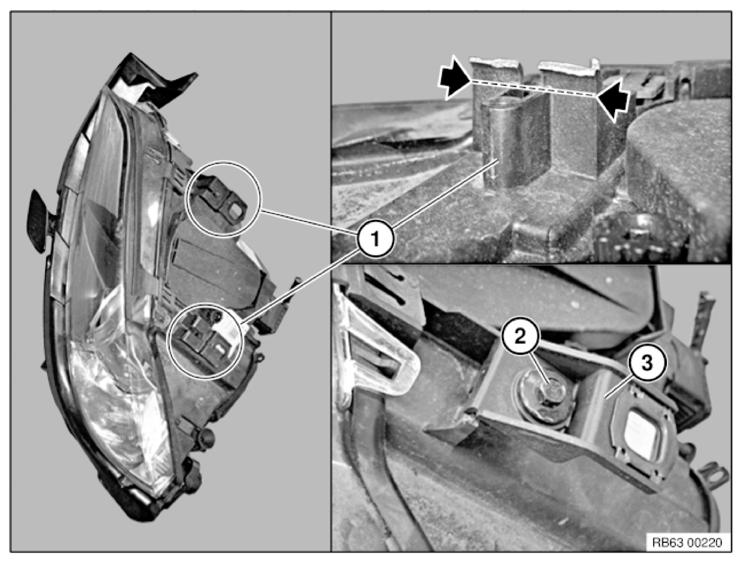

Fig 1: Identifying Damaged Holder, Repair Kit And Mounting Screw
Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Damaged holders (1) can be replaced with the repair kit.
Replacement of headlight is not required!

Remove damaged holder (1) as far as the line identified with arrows.

Fit holder from repair kit (3) as illustrated and tighten the screw (2).

After installation:

ADJUST HEADLIGHTS
