33 00... Notes on repairing threads

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2013 BMW 335is, 2013 BMW 335i, 2012 BMW 335is, 2012 BMW 335i, and 2011 BMW 335is. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Install Helicoil thread inserts so that they are flush with the original thread.

NOTE: Damaged threads in the frame side member may be repaired with Helicoil thread inserts. Comply with the PROCEDURE described in the example.

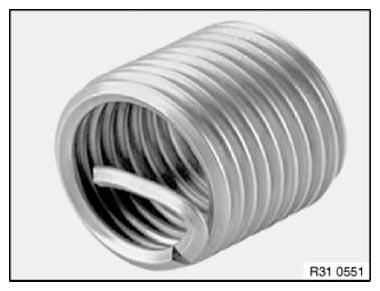

Fig 1: Identifying Helicoil Thread

Courtesy of BMW OF NORTH AMERICA, INC.
