33 17... Replacing rubber mount

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 BMW 335xi, 2013 BMW 335is, 2013 BMW 335i, 2012 BMW 335xi, and 2012 BMW 335is. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

Withdrawing rubber mount

Pull out rubber mount with special tools 33 4 282 , 33 4 281 , 33 4 466 , 33 4 465 and nut (1).

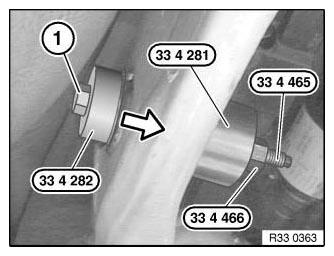

Fig 1: Pulling Out Rubber Mount Using Special Tools

Courtesy of BMW OF NORTH AMERICA, INC.

Installing rubber mount

IMPORTANT: Coat bearing bush in rear axle support and new rubber mount with Circo Light (refer to BMW Parts Department).

Align rubber mount by way of elongated hole (1) to vehicle transversal direction.

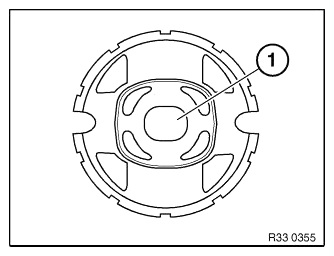

Fig 2: Identifying Elongated Hole

Courtesy of BMW OF NORTH AMERICA, INC.

Insert rubber mount (1) in special tool 33 4 283 .

Align rubber mount (1) by way of elongated hole to vehicle transversal direction.

Draw in rubber mount (1) with special tools 33 4 282 , 33 4 283 , 33 4 284 , 33 4 466 , 33 4 465 2 and as far as it will go.

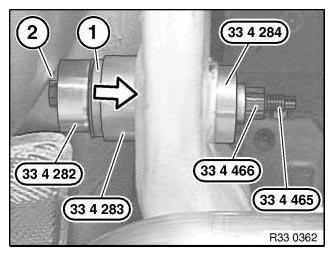

Fig 3: Inserting Rubber Mount Using Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.
