23 14... Replacing reversing light switch

Necessary preliminary tasks:

Transmission GS6-17DG/BG

Disconnect plug connection (1) on reverse gear switch.

Remove reverse gear switch.

Tightening torque 23 14 1AZ .

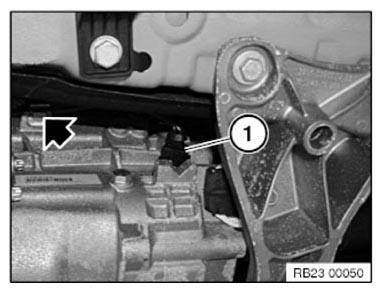

Fig 1: Locating Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Transmission GS6-45DZ

Disconnect plug connection (2) from the reversing light switch.

Remove reversing light switch.

Tightening torque 23 14 1AZ .

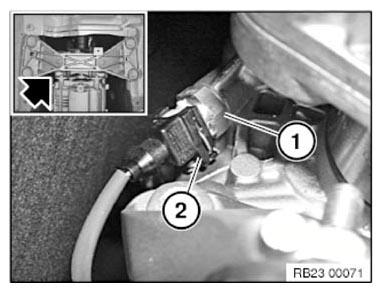

Fig 2: Locating Plug Connection On Reversing Light Switch

Courtesy of BMW OF NORTH AMERICA, INC.
