32 31 003 Removing and installing/replacing upper section of steering column shroud

Move steering column in "bottom" and "extended" position.

Pull steering column gap cover up carefully and clip out gap cover.

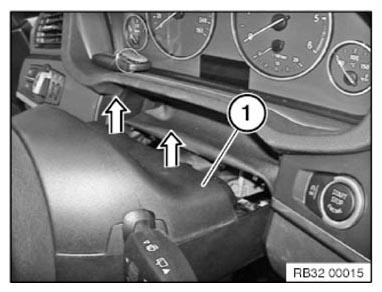

Fig 1: Pulling Steering Column Gap Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Pull steering column shroud (1) up.

Clip steering column gap cover (1) out of steering column shroud upper section.

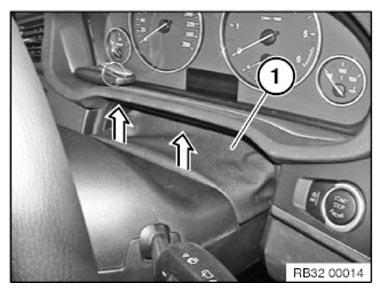

Fig 2: Pulling Steering Column Shroud

Courtesy of BMW OF NORTH AMERICA, INC.
