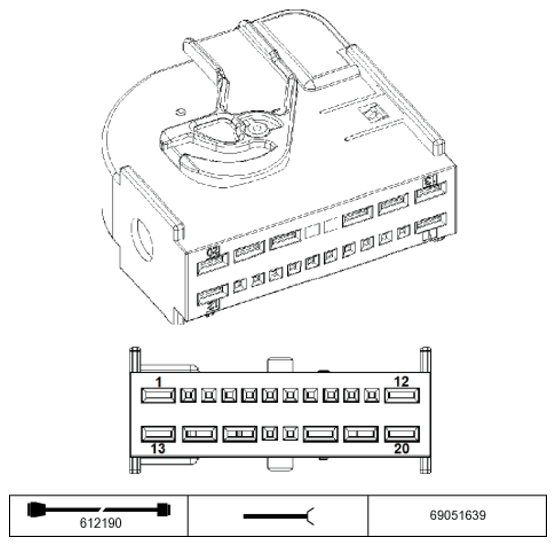

Trailer Module A36*1B Connector End View
Pin Assignments At Plug Connector A36*1B
| Pin | Type | Description /Signal type | Connection /Measuring information |
|---|---|---|---|
| 1 | A | Activation, brake light | Trailer socket |
| 2 | E/A | Body CAN bus signal | Bus connection |
| 3 | E/A | Body CAN bus signal | Bus connection |
| 4 | E/A | LIN bus signal | Fully automatic towing hitch |
| 5 | -- | Not used | |
| 6 | -- | Not used | |
| 7 | -- | Not used | |
| 8 | -- | Not used | |
| 9 | E | Actuation, turn signal light, right | REM Rear Electronic Module |
| 10 | E | Activation, brake light | REM Rear Electronic Module |
| 11 | -- | Not used | |
| 12 | A | Activation, rear fog light | Trailer socket |
| 13 | E | Power supply, terminal 30F | Fuse F113 |
| 14 | A | Actuation, tail light, right | Trailer socket |
| 15 | A | Actuation, turn signal light, right | Trailer socket |
| 16 | A | Activation, reversing light | Trailer socket |
| 17 | M | Ground | Ground point |
| 18 | A | Actuation, turn signal light, left | Trailer socket |
| 19 | A | Actuation, tail light, left | Trailer socket |
| 20 | E | Power supply, terminal 30F | Fuse F114 |
