61 31 208 Removing and installing/replacing switch for front lumbar support

Necessary preliminary tasks:

Expand catches (1) of cover (2), unclip switch for front lumbar support (3) in direction of arrow and remove.

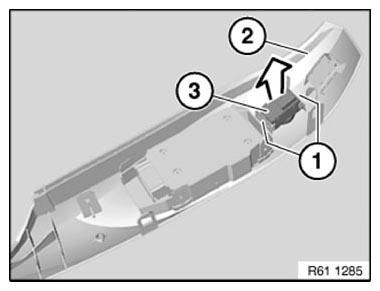

Fig 1: Removing Front Lumbar Support Switch
G10022454Courtesy of BMW OF NORTH AMERICA, INC.
