61 31 133 Removing and installing/replacing AV connection socket

Special tools required:

• 00 9 317

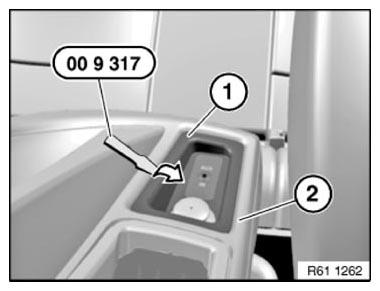

Partially fit special tool 00 9 317 as illustrated.

Lever trim (1) in direction of arrow out of storage compartment (2).

Disconnect associated plug connections and remove trim (1).

Fig 1: Fitting Special Tool 00 9 317

Courtesy of BMW OF NORTH AMERICA, INC.

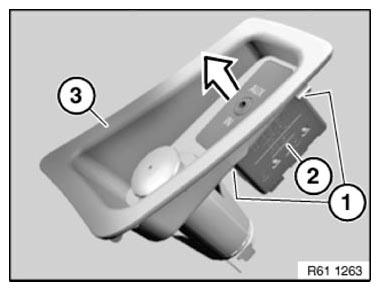

Press in catches (1) and remove AV connection socket (2) in direction of arrow from trim (3).

Fig 2: Removing AV Connection Socket From Trim

Courtesy of BMW OF NORTH AMERICA, INC.
