61 31 101 Removing and installing/replacing switch for backrest width adjustment

Expand catches (1) of outter cover (2) and unclip switch for backrest width adjustment (3) in the direction of the arrow.

Disconnect associated plug connection and remove switch for backrest width adjustment (3).

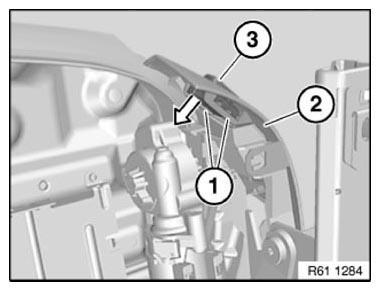

Fig 1: Removing Backrest Width Adjustment Switch

Courtesy of BMW OF NORTH AMERICA, INC.
