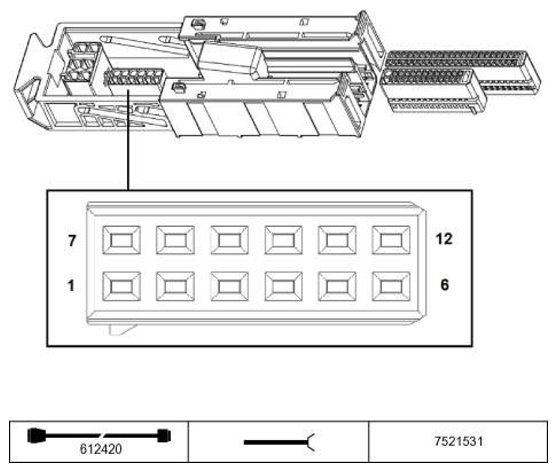

A6000 DME Control Unit, Module 6 X60006 Connector End View
Pin Assignments At Plug Connector X60006
| Pin | Type | Description /Signal type | Connection /Measuring notes |
|---|---|---|---|
| 1 | A | Signal, fuel injector | Fuel injector, cylinder 1 |
| 2 | A | Signal, fuel injector | Fuel injector, cylinder 2 |
| 3 | A | Signal, fuel injector | Fuel injector, cylinder 3 |
| 4 | A | Signal, fuel injector | Fuel injector, cylinder 4 |
| 5 | A | Signal, fuel injector | Fuel injector, cylinder 5 |
| 6 | A | Signal, fuel injector | Fuel injector, cylinder 6 |
| 7 | M | Ground, fuel injector | Fuel injector, cylinder 1 |
| 8 | M | Ground, fuel injector | Fuel injector, cylinder 2 |
| 9 | M | Ground, fuel injector | Fuel injector, cylinder 3 |
| 10 | M | Ground, fuel injector | Fuel injector, cylinder 4 |
| 11 | M | Ground, fuel injector | Fuel injector, cylinder 5 |
| 12 | M | Ground, fuel injector | Fuel injector, cylinder 6 |
