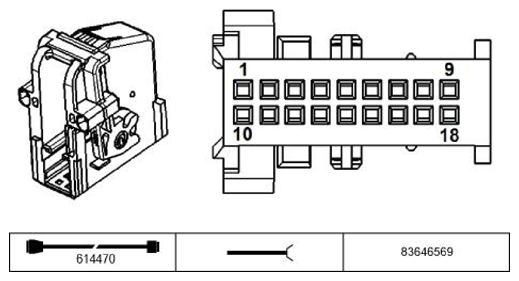

Video Module X18804 Connector End View
Pin Assignments At Plug Connector X18804
| Pin | Type | Description /Signal type | Connection /Measuring notes |
|---|---|---|---|
| 1 | E | Video signal | Reversing camera |
| 2 | -- | Not used | |
| 3 | E | Video signal | DVD changer |
| 4 | -- | Not used | |
| 5 | M | Ground RGB video signals | Navigation system |
| 6 | -- | Not used | |
| 7 | -- | Not used | |
| 8 | -- | Not used | |
| 9 | -- | Not used | |
| 10 | M | Ground Video signal | Reversing camera |
| 11 | E | Shield | Navigation system |
| 11 | E | Ground Video signal | DVD changer |
| 12 | E | RGB video signals | Navigation system |
| 13 | E | RGB video signals | Navigation system |
| 14 | E | RGB video signals | Navigation system |
| 15 | -- | Not used | |
| 16 | -- | Not used | |
| 17 | -- | Not used | |
| 18 | -- | Not used |
